Lunos e<sup>go</sup>

Lunos ego

Regular price €1,063.00 Sale

Availability: In Stock Out of Stock

Vendor: Partel UK

SKU: Bundle_ego


Reverse technology for exhaust air rooms

Description

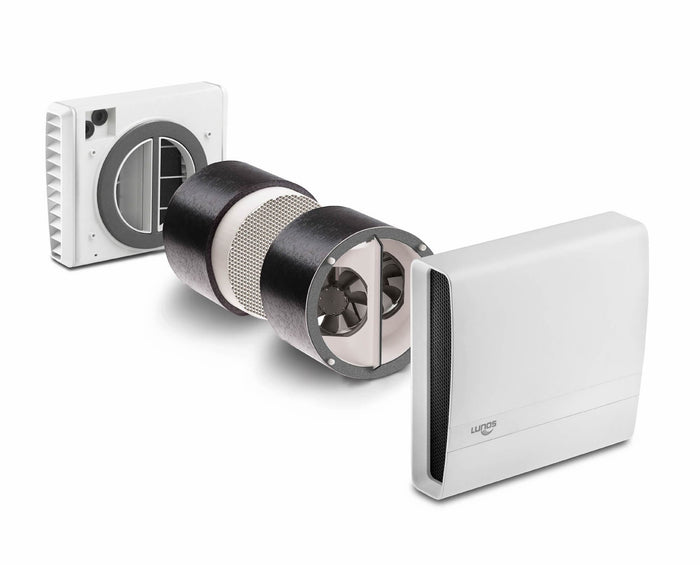

The Lunos ego was developed for optimum ventilation with heat recovery in bathrooms, WCs, and kitchens. It operates in accordance with the principle of the regenerative heat exchanger. A storage element is charged with heat as for the e². However, this is so skillfully distributed via two fans so that supply and exhaust air can be transferred simultaneously. A second unit is not required for operation. This system can also be switched in an exhaust air mode in which a very high flow rate of 45 m³/h is discharged in order to enable swift inflow of fresh air into a room.

Advantages

  • Environmentally friendly – Efficiency

The very low power consumption ensures high energy-efficiency, making an active contribution to environmental protection and at the same time saving you money. The ego thus achieves the energy efficiency class B.

  • Healthy indoor environment

  • Innovative – Heat Recovery

The compact heat store made of a ceramic composite material with an extraordinary honeycomb structure provides high thermal efficiency. The so-called acuvent storage stone is located at the center of the airflow of an ec-motor with axial fan. By means of a reversing airflow arising via systematic change of direction of the fan, the ceramic is charged with the thermal energy of the room air and transfers this back to the outside air supplied.

  • Slim - Small dimensions

The ego is among the smallest de-centralized fans for home ventilation with heat recovery in the world in the class of two-way devices. By applying state of the art production processes we have managed to develop compact heat storage of ceramic composite material which provides a mean thermal efficiency of 90.6 or 85 %.

  • Compatibility with other devices

If a LUNOS ventilation system has already been installed, the Lunos ego can be replaced in existing outside wall air outlets of the 160 series.

  • Versatile installation option

Lunos ego can be used in new constructions and in redevelopment work. In new constructions, they are installed between the bricks with the aid of a wall rack or installed subsequently e.g. in the case of redevelopment work using a 162 mm large core drill hole. The wall must be at least 30 cm thick.

Technical data

Enveloping surface sound pressure level From 17dB (47dB)
Max. heat provision level 81.4%
 Power consumption 1.0/ 1.7/ 4.5/ 4.9 W
Standard sound level difference 43 dB
Efficiency 1,0 W at 5 m³/h
1,7 W at 10 m³/h
4,5 W at 20 m³/h
4,9 W at 45 m³/h exhaust air mode
 Innovative Two EC motors provide two reversing airflows at the same time for ventilation.
Fan size Ø154 x 300 mm
Compatible Compatible with other 160 systems provided
ego internal and external panels can
be used.

System includes:

  • 1 LUNOS ego with heat recovery
  • 1 LUNOS Wall-tubes for the series 160
  • 1 LUNOS Smart Comfort control
  • 1 LUNOS Two-way outer hood
  • 1 LUNOS Transformers
